漢鐘干式螺桿真空泵在等離子清洗設備中的真空應用（三）

1. 工藝參數要求 Process Data Requirement

2. 技術方案 Technical Proposal

根據使用經驗，推薦使用漢鐘旗下著名真空品牌產品，PS1302-CC2干式螺桿真空泵.

According to the process, we recommended the popular vacuum products under Hanbell PS1302 Screw Dry Vacuum Pump.

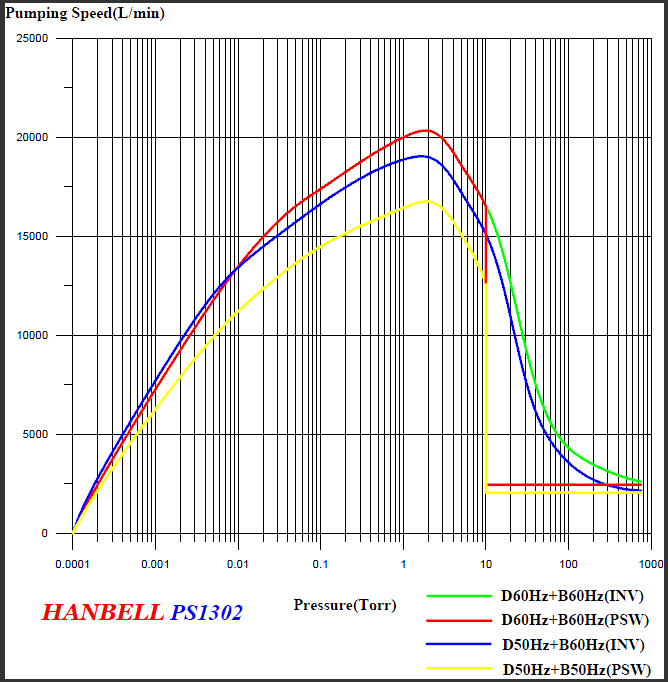

-  真空泵（機組）的技術特性Characteristic of vacuum package

- 機組配置 Package configuration

- 驅動電機為直聯電機，4.5kw/380v+4.5kw/380v

Direct driven motor by 4.5kw/380v +4.5kw/380v

- 真空泵過流部分NMC防腐涂層

  NMC coating for process parts

- 氮氣密封保護和停機清洗吹掃

  Nitrogen-sealed protection and pump stop purge

- 排出管路配有不銹鋼消音器可以降低噪音

 Stainless Steel Silencer mounted at exhaust line for reduce the noise

- 整套真空機組會安裝在碳鋼焊接底座上成為一體，外面加鈑金外箱。

- The vacuum pumps, motors, valves, instruments, pipeworks will be mounted on a carbon steel base as a skid, with package.

3.  Technical Specifications and Description 技術參數和配置詳述

3.1 Dry Screw Vacuum Pump螺桿真空泵PS1302-CC2

PS1302為單級壓縮，水冷式，無油干式螺桿真空泵組，特殊的螺桿設計確保干泵低溫且高效運行。

PS1302 is a single stage, water cooled, dry running screw vacuum pump unit. The special designed screw gives high efficiency and low internal temperatures.

它的主要特點如下：

Its major features are :

低溫，干式，無油無水的純凈系統運行，可大大減少污染。

- Cool, Dry running, oil and water free pumping, to minimise pollution.

無接觸式壓縮，可確保無磨損運行。

- Non-contact compression for wear free operation.

對液體有一定的兼容性，適合抽取冷凝性氣體，及一定量的固體顆粒雜質。

- High tolerance to proper liquid carry-over, condensate and process solids.

允許就地使用氮氣，合適的蒸汽，溶劑等沖洗泵體。

- Designed to allow cleaning in-situ, with N2, steam, solvent etc.

迷宮式密封，結合氮封

- Labyrinth seals， with N2 sealing

操作使用方便，幾乎免維護。

- Easy to operation, almost no maintenance.

3.2間接水冷系統Indirect Cooling System：

  間接水冷卻系統含副水箱(內部有冷卻液)，通過外接冷卻水冷卻冷卻液,最大限度的保護了真空泵，避免了溫度過高對泵產生的不良影響；

The water cooling system consists of the expansion tank which contains cooling liquids, the fresh cooling water cools the cooling liquids, it mostly protect the pump damage from the higher temperature.

冷卻水流量：不少于4L/min

  Cooling water: No less than 4L/min

  冷卻水進水溫度：15~30℃

  Temperature of the cooling water supply: 15~30℃

  冷卻水供水壓力：2-4 bar，排水無背壓

  Pressure of the cooling water supply: 2-4 bar, water return no pressure

3.3 氮氣吹掃系統Nitrogen purge system

進氣口氣體吹掃接口，可根據實際工藝情況選擇使用。干燥氮氣吹掃有利于幫助將可凝性氣體徹底排出。也可用于低溫條件下幫助預熱真空泵。

One port for pump stop purge at the pump inlet, customer can choose use it or not. Nitrogen purge is helpful for removing the condensate, and it also can help to warm the pump under low temperature.

氮氣密封保護可有效防止工藝氣體從泵腔密封處泄漏到油箱使?jié)櫥托阅芟陆翟斐蓪Ρ玫膿p壞。

Nitrogen-sealed protection purge can prevent the process gas leaking to the oil box then damage the pump by decreasing the capability of the oil.

-氮氣吹掃管路路附件Nitrogen purge system piping connection：

 N2 pressure gauge

N2 pressure regulator

3.4排氣消音器及排氣止回閥， Discharge silencer and Discharge check valve

排出管路配有不銹鋼消音器，降低噪音.排氣止回閥，防止氣體返流。

  Discharge silencer at discharge line will reduce noise and discharge check valve avoid the gas sucked back

4.機組供貨范圍(單套)  Scope of Vacuum Package（1set）

5. 圖紙資料交付 Documents Delivery

設備交付時，隨機交付以下紙質資料各1套。

Document delivery (one set for each) along with the equipment

－維護使用說明書 Operation manuals

－工廠試驗檢驗報告  Factory test report

－所有供貨設備的合格證明  Qualification certificate for supply equipment

－竣工圖  Completion drawing

6.  服務及質保 Service and Warranty

漢鐘的售后服務體系提供“一天24小時，一周七天，全年365天”全天候無休服務。

Hanbell after service system provide “24 hours, 7 days of week, 365 days of year”, no break service.

漢鐘的服務工程師都經過專業培訓，在工業領域具有極高的維修水準，他們具有足夠的技能對轉動設備、電氣控制面板、整個系統與過程進行維修與保養。中國的技術工程師會在8小時內對工藝技術問題給出響應，全球技術支持體系會在24小時內對疑難問題做出響應。如遇現場需要或緊急情況，漢鐘服務機構會火速派遣工程師24小時內到達客戶現場，用最先進的通訊手段來聯絡和調配服務工程師。

All the hanbell service engineers are special trained. They all reached high service level in industry field, and they are full of skills to repair and maintenance the power equipment, control system and the package. Hanbell China technical engineers will be response the technical problem within 8 hours, hanbell all world support system will be response the troubles and difficult within 24 hours. If there is request or emergency situation on site, hanbell service department will arrange service engineers to customer’s site within 24 hours. There is most advanced communication system in hanbell for contact and arrange the service engineers.

位于上海的制造中心、服務中心和備件倉庫能給用戶在售后服務上提供堅定的承諾和強有力的支持，以最優的價格提供正牌配件。同時，我們的服務工程師會定期與客戶溝通了解設備運行情況，并經常到現場拜訪。

The manufacture center, service center and spare parts warehouse which located Shanghai will provide the stable promise and strong support, and will provide the standard brands spare parts with preferential price. At the same time, our service engineers will contact with the customer and find out whether the equipments are all right commonly, even often go to visit the customer.
